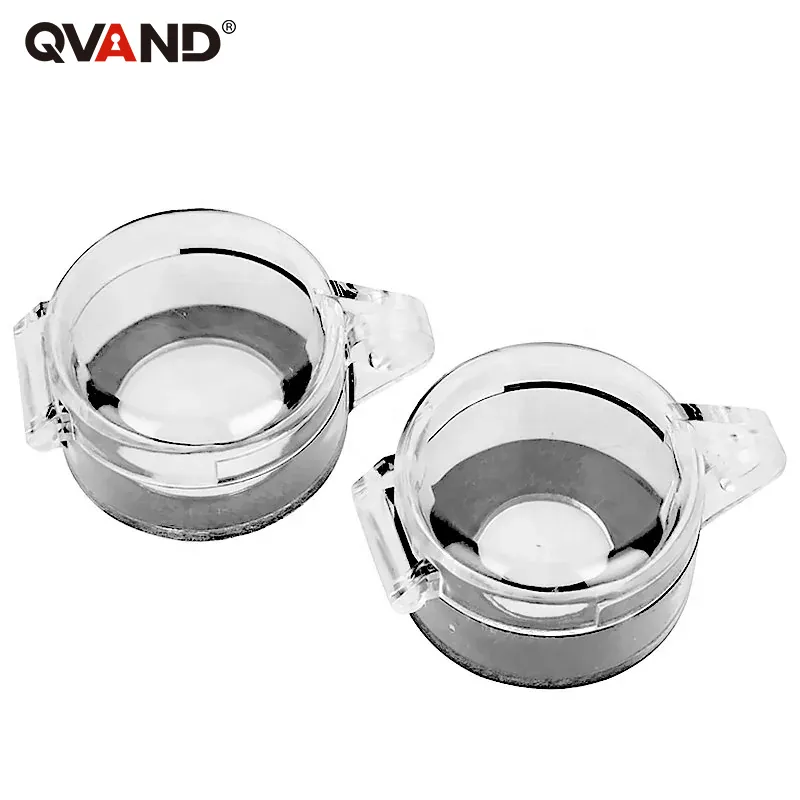

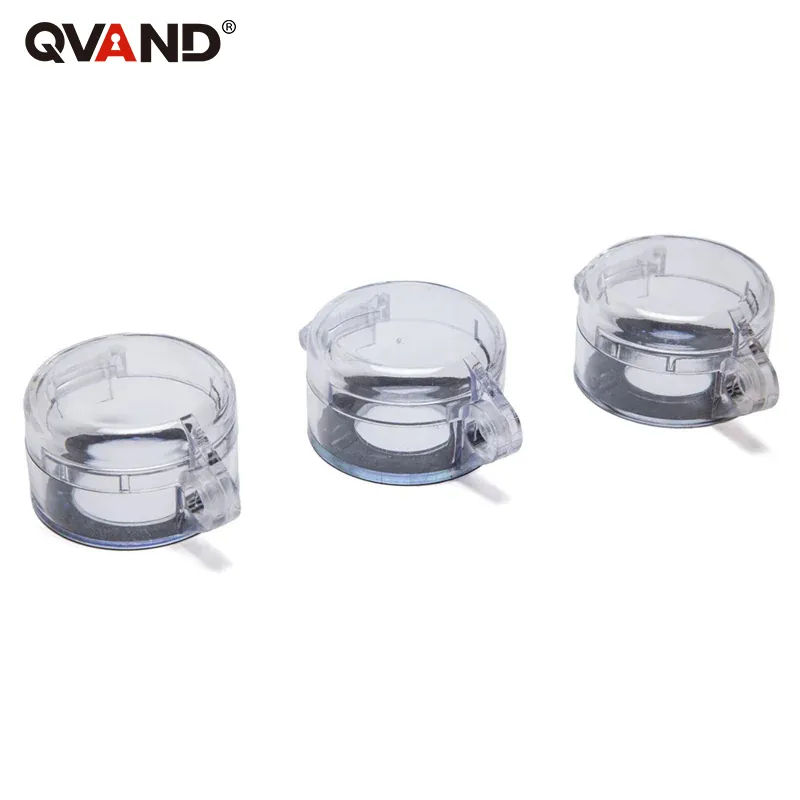

30mm Push Button Lockout
M-Q05

30mm Push Button Lockout

M-Q05, hole diameter: 32mm, outer diameter: 50mm. inner diameter 22mm.

N-Q05L, hole diameter: 32mm, outer diameter: 50mm. inner diameter 22mm.

M-Q06, hole diameter: 43mm, outer diameter: 55mm. inner diameter 25mm.

PRODUCT DETAIL

Specification

a) Made of transparent glass resin PC. Using industrial 3M glue.
Visual management more safety, transparent raw material, easily and clearly to see the state of switch.

b) Once locked, prevent the valve from being turned.

c) The base allows use with two semicircles to accommodate valve.

d) Accommodates valve. Up to 55 mm diameter and 43mm tall.

e) Fits 32 mm-46 mm diameter valve.
