How Gate Valve Lockout Devices Secure Isolation?

When Elena Markovic, a Rotterdam maintenance supervisor, asked a technician to isolate a cooling-water gate valve before pump repair, the handwheel was taped and tagged—but a nearby operator tried to reopen the line minutes later because the valve still looked usable. The tag was not the problem. The root cause was that the isolation point never had a device sized to block handwheel rotation and accept each worker’s lock.

Summary: Gate valve lockout devices cover the handwheel, hold the valve in its safe/off position, and create a lockable control point under OSHA 29 CFR 1910.147. Procurement should verify handwheel diameter, stem clearance, material exposure, lock capacity and site procedure before buying. A correct device does not replace energy verification—it only makes unauthorized or accidental operation harder.

Gate Valve Lockout Devices prevent reopening when the handwheel remains physically covered

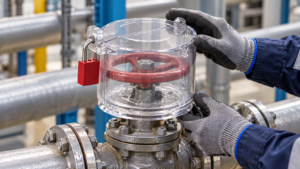

A typical gate valve lockout encloses the handwheel with two hinged or clamshell halves, then accepts one or more padlocks through aligned holes. Once locked, the cover blocks normal grip and rotation; the worker still verifies zero energy according to the written lockout procedure.

OSHA 1910.147 requires energy-isolating devices to be locked out when they are capable of being locked, and OSHA’s control-of-hazardous-energy guidance separates lockout hardware from tag warning systems. That distinction matters commercially: a tag may communicate instruction, while a covered handwheel provides a physical barrier against routine operation.

For buyers, the hidden cost is not only the unit price. A poorly sized device can delay maintenance, force improvised controls, or create inconsistent field practice across shifts. The better specification is to match device range to the site’s actual valve population, then standardize training around those sizes.

A covered handwheel makes the intended valve position visible and difficult to alter during maintenance.

Gate Valve Lockout Devices compare differently with cable and ball valve controls

Valve type determines the lockout logic. A gate valve uses a handwheel; a ball valve typically uses a lever; an isolation valve is a functional category for any valve used to separate energy or material flow. That means a gate valve may be an isolation valve, but not every isolation valve is a gate valve.

Control option	Best fit	Strength	Limitation	TCO consideration
Gate valve cover	Round handwheels on utility or process lines	Blocks wheel access directly	Needs correct diameter and stem clearance	Efficient when many similar valves exist
Cable lockout	Irregular valves or multiple points	Flexible routing	Can be slower to apply consistently	Useful as a backup for non-standard assets
Ball valve lockout	Quarter-turn lever valves	Controls handle movement	Does not fit handwheel valves	Reduces mismatch errors in mixed valve inventories
Tag only	Communication where lockout is not possible or not required by procedure	Visible warning	No physical restraint	Higher supervision burden where unexpected operation is credible

An effective gate valve lockout program usually combines dedicated covers for standard handwheels with flexible devices for exceptions. This avoids buying one universal tool that is convenient for procurement but awkward for technicians.

Gate Valve Lockout Devices support compliance only when procedures assign control and verification

Standards do not certify every individual valve lock as compliant by itself. OSHA 1910.147 in the United States defines the employer’s control-of-hazardous-energy duties; CCOHS guidance explains program elements for Canadian workplaces; HSE HSG253 addresses isolation and safe intervention principles in the United Kingdom. Product claims should therefore be tied to intended use, destination market, and the employer’s procedure.

Commercially, unsupported compliance wording creates risk for both the buyer and distributor. A device can be designed for lockout/tagout use and help meet a procedure, but the site still needs written steps, authorized employees, training, periodic inspection, and verification that stored or residual energy is controlled.

For group maintenance, one lock point may not be enough. The visible rule is that every authorized worker maintains personal control, often through a hasp or lock box system when multiple isolation points are involved.

Group isolation normally requires personal locks or a managed hasp/lock-box method, not a single shared key.

Gate Valve Lockout Devices should be specified through a documented selection guide

Procurement teams should ask five questions before approving a gate valve lock: Which valves are energy-isolating devices? What handwheel sizes are actually installed? How many people may lock the same point? Which environments shorten plastic or metal service life? What evidence will auditors expect during periodic inspection?

As a manufacturer and exporter of lockout/tagout products, QD LOTO can support configurable sizing, sample review, and distributor documentation for Gate Valve Lockout Devices. The most useful supplier conversation is not only about catalog size; it is about making the product match the buyer’s energy-control procedure.

For larger facilities, build a valve register and assign device families by application. Mark exceptions for cable devices, high-temperature areas, or confined access. This makes reorder planning easier and reduces the chance that technicians improvise during a shutdown.

Frequently Asked Questions

Do lockout devices hold energy isolation devices in a safe or off position?

Yes, when correctly selected and applied, lockout devices are intended to hold an energy-isolating device in a safe or off position by preventing normal operation. They do not prove zero energy by themselves, so the authorized worker still follows shutdown, isolation, lock application, release of stored energy, and verification steps.

What is the difference between a gate valve and an isolation valve?

A gate valve is a valve design that opens or closes flow with a gate moved by a handwheel or actuator. An isolation valve is a role in a system: it separates equipment from energy or material flow. A gate valve can serve as an isolation valve when the procedure designates it for that purpose.

Which device is used to facilitate the locking of multiple isolation points?

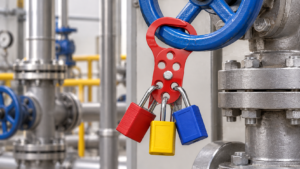

A lockout hasp, group lock box, or cable system may be used depending on the procedure and number of points. For simple group locking at one point, a multiple-lockout hasp lets several workers apply personal locks while maintaining individual control.

How to lockout a valve?

Follow the site’s written LOTO procedure: notify employees, shut down equipment, close the valve, apply the correct lockout device and personal lock, control stored energy, verify isolation, then work. After completion, remove tools, confirm personnel clear, remove locks per procedure, and restore service in sequence.
