When maintenance supervisor Elena Ramirez in Houston faced a rooftop air-handler belt replacement requiring electrical and pneumatic isolation, she issued the usual red padlock and sent the crew to secure the disconnect. Minutes later, the long shackle twisted against the cabinet lip, the tag faced inward, and the air line could still be reconnected by hand. The reversal was clear: the failure was not a defective lock, but a poor match between the isolation point, shackle clearance, key control, and accessories.
Fit the padlock to the real isolation point
A facility program fails when the lock fits the purchase sheet but not the equipment. Disconnects, valves, pneumatic couplers, breaker covers, and hasp holes create different clearance limits. A suitable Loto Lock should close fully without forcing the shackle, hiding the tag, or leaving the isolating device movable.
OSHA’s hazardous-energy rule focuses on the employer’s procedure, training, periodic inspection, and verification. The lock is one device within that system. A non-conductive nylon body may suit electrical rooms. A long steel shackle padlock may solve reach issues, but it can also create leverage and snagging if specified without a site trial.
| Selection factor | Weak choice | Controlled choice | Maintenance consequence |
|---|---|---|---|
| Isolation fit | One shackle length for all equipment | Device-specific shackle after field check | Fewer forced locks and blocked tags |
| Key control | Shared keys in an open drawer | Assigned keys held by authorized employees | Clear responsibility during removal |
| Material | Same body in every area | Nylon, steel, or laminated body matched to exposure | Lower corrosion, conductivity, or impact risk |
| Documentation | Unnumbered locks with handwritten notes | Employee ID, lock number, procedure reference | Better audits and shift handover |
Control keys, colors, materials, and group work

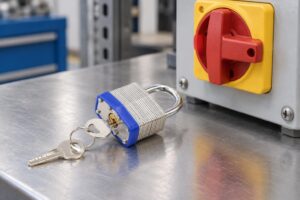

Lockout is personal control, not just red hardware on a handle. The authorized employee applying the device must retain control under the employer’s written procedure. A Lockout Tagout Padlock with numbering, clear labeling, and a controlled key system helps supervisors see who is protected and who may remove a device.

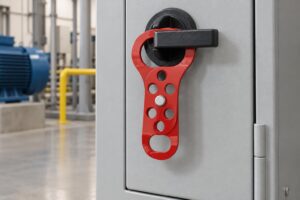

Group maintenance often adds contractors, sanitation, EHS, and production support. A multiple-lockout hasp lets several authorized employees apply their own locks to one point. For compact disconnects or harsh mechanical rooms, a laminated pin padlock may improve impact resistance, but the keying plan still decides whether the program works.
| Application area | Isolation challenge | Useful dimension | Control to document |
|---|---|---|---|
| Rooftop HVAC | Weather, distance, multiple trades | Corrosion resistance, readable ID, tag protection | Employee assignment and removal sequence |
| Boiler room pumps | Wet surfaces and vibration | Body material, shackle clearance, hasp hole fit | Stored energy release and zero-energy verification |
| Electrical rooms | Crowded disconnects and cabinet clearances | Non-conductive body option and compact shackle | Authorized-user key control |
| Pneumatic work cells | Quick reconnect risk after air bleed-down | Connector-specific device plus padlock | Bleed, block, and try-start verification |
Facility environments expose locks to cleaners, sunlight, oil mist, impact, temperature change, and outdoor storage. Start with exposure, not color. After applying a Loto Lock, the team should perform the approved try-start or zero-energy check after personnel are clear. For pneumatic energy, a pneumatic quick-disconnect lockout may be needed to control the connector rather than merely warn workers.
OSHA scope, tagout limits, and procurement guide
OSHA 29 CFR 1910.147 covers the control of hazardous energy during servicing and maintenance. It does not certify padlocks, and suppliers should not market any safety lock as OSHA-certified. OSHA places the duty on the employer to establish an energy-control program, write procedures, train employees, inspect performance, and verify isolation before work begins.
Tagout is a warning method. Where equipment can be locked out, a tag alone is not the same physical restraint; when lockout is infeasible and tagout is used, the employer must provide the required level of protection through procedure and additional controls. CCOHS guidance makes the same practical distinction: lockout prevents operation, while tags communicate status and responsibility.
For procurement, approve a Lockout Tagout Padlock family only after these checks: map each energy source; measure the lock point and hasp hole; define keying rules by employee, department, or group box; choose materials by environment; require visible ID fields, numbering, and replacement criteria; and keep drawings with the written procedure.
Frequently Asked Questions
What are the requirements for a LOTO padlock?
A LOTO padlock should be durable, substantial, standardized, identifiable, and used only for hazardous-energy control within the employer’s written program. It should fit the isolation point, identify the authorized employee, support controlled key ownership, and remain effective in the actual work environment.
Is cutting a loto lock illegal?
Cutting a lock is a serious procedure exception and should not happen casually. OSHA expects lockout devices to be removed by the employee who applied them, except under a specific employer procedure that verifies the employee is absent, protects affected workers, and documents the removal.
What do the different color codes on a LOTO padlock mean?
Color codes are usually site-defined, not a universal OSHA color language. A facility may assign colors by department, trade, contractor status, equipment type, or lock function, but the meaning must be documented, trained, and used consistently.
What are the best safety locks for LOTO?
The best safety locks are the ones that match the energy-isolating device, environment, key-control plan, and group-work procedure. For many facility teams, the strongest program uses several compatible lock types instead of forcing one padlock to serve every electrical, mechanical, hydraulic, and pneumatic point.
References
- OSHA 29 CFR 1910.147 regulatory text
- OSHA Control of Hazardous Energy overview
- eCFR 29 CFR 1910.147
- CCOHS Lockout guidance
The closing principle is simple: a lockout padlock is only effective when the right person controls the right isolation point until verification proves the work is safe.
