When an EHS manager in Dayton, Ohio, encountered a crew lockout problem, she tried a new hasp at a machine’s isolation point. Within a minute, its jaws would not close and the padlocks crowded the holes. In this hypothetical scenario, checking the interface and crew requirements revealed a selection mismatch, not a defective product.
How does a Safety Lockout Hasp preserve each worker’s control?
A Safety Lockout Hasp fits a lockable interface and accepts several padlocks. Closing and locking it prevents normal opening. The disconnect, valve or other energy-isolating device performs the isolation; the hasp helps secure its position.
Securing an interface does not establish that all hazardous energy is isolated. OSHA addresses shutdown, stored energy and verification as well as lock attachment. CCOHS likewise describes a planned process, not a hardware-only action.
After shutdown and isolation, authorized workers apply the specified hardware at each required point. They must also release, restrain or otherwise render stored energy safe and verify isolation before work. A hasp cannot replace these steps.
OSHA 1910.147(f)(3) requires group protection equivalent to personal lockout. Each authorized worker attaches a personal device to the group device, lockbox or comparable mechanism when starting work and removes it when stopping. For direct hasp use, plan one personal lock per authorized worker.
A group lockout hasp does not allow a supervisor’s single lock to stand in for everybody. Shift changes need an orderly transfer of protection under 1910.147(f)(4). For many isolation points, assess a documented group-lockbox arrangement.
Last-lock removal only enables authorized restoration after checks. OSHA 1910.147(e) requires work-area and employee-position checks plus notification before startup. Exceptions to personal removal require the employer’s documented procedure and safeguards.

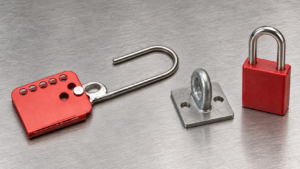

How should a Safety Lockout Hasp be sized for padlocks and isolation points?
Count workers, then check geometry. A six-hole model is illustrative, not a mandated capacity. Six personal locks fit only if their shackles and bodies permit closure and secure retention. OSHA 1910.147(f)(3) specifies personal protection, not a universal six- or eight-hole design.
Verify jaw opening, internal clearance, hole diameter and padlock shackle dimensions. Measure the actual attachment point and surrounding fittings; overall product length is not the same as usable jaw clearance.
Before approval, check sample closure, retention with one lock and clearance with the full planned lock set. A bench fit-check establishes compatibility, not verified isolation on operating equipment.
Never stack hasps without manufacturer and procedure support. Extra interfaces can create clearance problems. Consider a supported higher-capacity model or group-lockbox method instead of an undocumented adaptation.

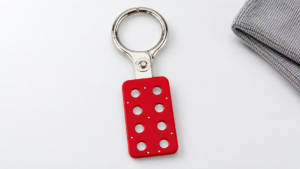

Which Safety Lockout Hasp materials suit the work environment?
Models may use steel, aluminum or engineered polymers. Assess hinges, coatings and closures, not just the material name. OSHA 1910.147(c)(5) requires durable, standardized, substantial and identifiable lockout devices; it does not prescribe one universal material.
For steel, check finish and exposure limits. For aluminum, evaluate mechanical design rather than treating low weight as proof of retention. For polymers, request the permitted temperatures and chemical conditions for the actual formulation.
Nonmetal construction does not prove electrical insulation or electrical PPE suitability. Such claims need relevant model-specific evidence. HSE PUWER guidance addresses safe work equipment; it is not a dielectric test or hasp certification.
A padlock and lockout station organizes related items, but pre-use condition checks remain necessary. Remove damaged hardware through the site’s process; color coding cannot repair a failed closure.
How can a Safety Lockout Hasp be compared by value and application?
Compare suitability before unit price. Incompatibility can cause returns and delayed work. Calculate total cost from site records; these factors are not quantified savings claims.
| Decision factor | Evidence to compare | Value consequence |
|---|---|---|
| Compatibility | Measured interface and full-lock sample fit | Avoids buying a nominally suitable but unusable model. |
| Durability | Model-specific exposure limits and inspection condition | Supports a defensible replacement plan. |
| Handling | Closure access with the intended lock bodies and gloves | Reveals difficult installation before deployment. |
| Unit cost and TCO | Quoted cost plus fit checks, replacements and handling time | Allows site-specific comparison without invented prices. |
| Identification | Personal-lock identification and site standardization | Supports control and consistent worker recognition. |
| Application | Dimension to establish | Decision boundary |
|---|---|---|
| Small crew at one point | Worker count, holes and padlock clearance | Each required personal lock must fit without obstruction. |
| Restricted disconnect interface | Jaw clearance and surrounding space | Use a supported interface; do not alter the isolator casually. |
| Several isolation points | Number of points and group-control arrangement | Assess whether a documented lockbox process is appropriate. |
| Wet or chemically exposed area | Actual exposure and manufacturer limits | Choose by documented conditions, not material appearance. |
| Shift handover | Overlap, responsibilities and transfer sequence | Preserve protection throughout the change of personnel. |
What compliance requirements affect a Safety Lockout Hasp program?
For covered US general-industry servicing, OSHA 29 CFR 1910.147 governs hazardous-energy control. Paragraph (f)(3) covers group protection, (d)(6) requires isolation verification before work, and (e) governs release. Hardware selection addresses only part of these obligations.
Paragraph (c)(6) requires procedure inspection at least annually, not annual product certification. Inspection, training and written procedures must address actual use and changes to machines or group arrangements.
In Great Britain, PUWER addresses work equipment and suitable isolation. HSE HSG253 covers safe plant isolation, particularly in process industries. CCOHS guidance does not replace applicable Canadian provincial or territorial requirements.
These sources have different scopes; none certifies a particular product or mandates a universal hole count. Unsupported compliance labels can create purchasing and protection failures. Request each claim’s basis for the intended market and use.
How should buyers specify a Safety Lockout Hasp before ordering?
When reviewing QD LOTO’s hasp selection range, specify the actual interfaces and procedure. Request exact-model evidence; do not infer dimensions or approvals from a category photograph.
- Define the arrangement. List isolators, worker numbers and handover needs; assign direct hasps or a documented lockbox process.
- Record fit. Specify jaw clearance, hole and shackle dimensions, and surrounding space; approve a sample.
- State exposure limits. Record temperatures, moisture and chemicals. Check model documentation and electrical claims separately.
- Approve use and replacement. Align training, identification and inspection; retain the specification for repeat orders.
Frequently Asked Questions
How does a Safety Lockout Hasp work?
A lockout hasp closes around a compatible interface and accepts personal padlocks. Any remaining lock normally prevents opening. The energy-isolating device and full procedure provide isolation and verified protection.
When should you use a Safety Lockout Hasp?
Use one when authorized workers need personal control at a compatible common isolation point and the procedure specifies it. Confirm fit and all energy controls. Large crews or multiple points may need another documented group method.
How many padlocks can it hold?
Capacity depends on holes and clearance with the selected locks. Six holes are illustrative, not a universal requirement or a guarantee that every lock set fits. Check the specification and planned configuration.
What materials are lockout hasps made from?
Models may use steel, aluminum or engineered polymers with different coatings and parts. Check documented mechanical and environmental suitability. Nonmetal construction alone does not establish dielectric performance or electrical PPE suitability.
References
- OSHA 29 CFR 1910.147: Control of hazardous energy
- CCOHS: Lockout/Tag out
- HSE HSG253: The safe isolation of plant and equipment
- HSE: Provision and Use of Work Equipment Regulations
