When a maintenance planner in Nottingham compared a machine procedure with a recently altered distribution panel, the document still referred to the former breaker location. This illustrative scenario did not call for another padlock first. It called for a controlled review of equipment identity, supply changes and the verification method before the procedure could be relied on.
Summary: LOTO system safety depends on connecting the machine, each relevant energy-isolating point, the approved device and the verification requirements. A circuit breaker LOTO accessory is only one part of that record. 29 CFR 1910.147(c)(4) requires specific procedure elements, while 1910.333(b)(2) separately addresses applicable electrical deenergization and verification practices.
Link equipment identity to actual isolation points
Start with a unique machine or asset identity and the task covered by the procedure. Map all relevant energy sources, including supplies that can remain present when the normal operating control is off. The record should distinguish an energy-isolating device from a push button, selector or control-circuit command.
Use identifiers that authorized staff can match to the physical equipment. A document saying only main breaker leaves ambiguity where several boards or machines use the same description. Photographs can support the record, but they must correspond to the current location and revision. Qualified personnel should collect electrical information using safe methods; the survey is not permission to investigate exposed energized parts.
| Record layer | Information | Purpose |
|---|---|---|
| Equipment | Asset identity and task boundary | Defines what is being serviced |
| Isolation point | Location, identifier and source | Directs the authorized worker |
| Hardware | Approved device and padlock arrangement | Makes selection reproducible |
| Verification | Task-specific method and responsible role | Checks the required condition |
Control changes to machines and their electrical supplies

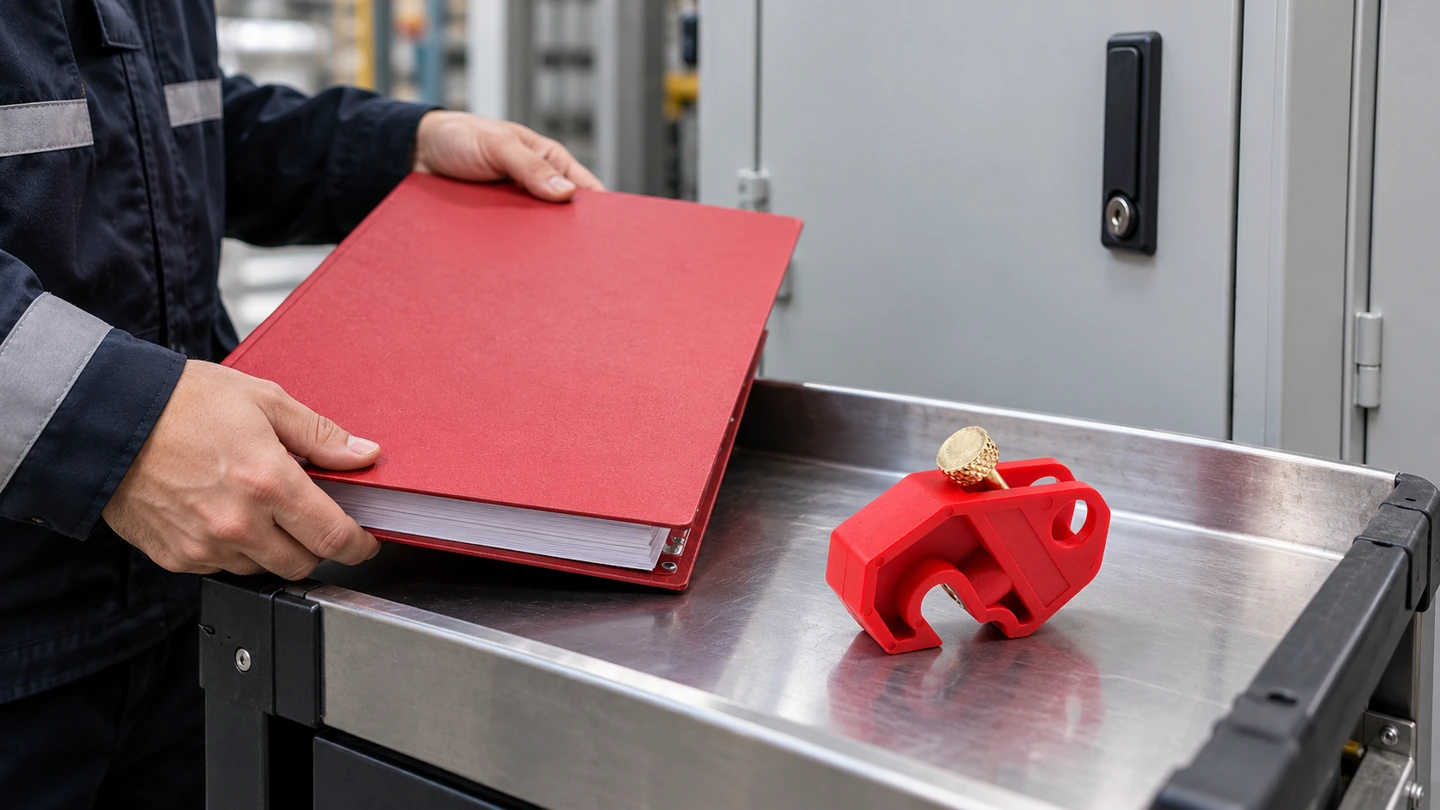

A replacement breaker, relocated panel, new auxiliary supply, modified machine or changed accessory can invalidate part of the record. Treat the change as a review trigger, then decide which procedures, fit approvals and training need revision. A changed label without a technical check may simply make the wrong record look current.
Keep the approved breaker/device combination with its trial evidence and enclosure constraints. The breaker fit guide explains those mechanical checks. The energy-source overview helps prevent the electrical record from overlooking pneumatic, mechanical or other stored energy on the same machine.
| Change | Record to review | Possible follow-up |
|---|---|---|
| Breaker model replaced | Compatibility and fitting instructions | Reapprove device and padlock fit |
| Supply added or altered | Energy-source map and verification | Revise procedure and brief affected staff |
| Panel rearranged | Identifiers and access photographs | Correct location references |
| Worker or shift arrangement changes | Roles and continuity controls | Review handover and training needs |
Use standards to define duties, not to decorate the checklist
29 CFR 1910.147(c)(4) requires specific steps for shutting down, isolating, blocking and securing, placement/removal/transfer responsibilities, and testing to verify effectiveness. Paragraph (c)(6) requires periodic procedure inspection at least annually. Under (c)(7), relevant changes or identified deficiencies can require retraining; an annual signature alone does not resolve an inaccurate procedure.
For electrical work within its scope, 1910.333(b)(2) adds requirements for disconnecting energy sources, addressing relevant stored energy and qualified-person verification. Neither regulation turns a breaker accessory into a complete LOTO system. Shift and personnel changes also need continuity under 1910.147(f)(4), and multi-crew work requires appropriate group controls.
Purchase devices from the controlled equipment register
Have the responsible team approve the energy-source record, verify each device against the actual interface, retain the fit evidence and assign a change owner. QVAND breaker lockouts can be assessed against that register instead of a generic circuit list. Include the effort of surveying, recording and revising equipment in the purchasing decision. A low-cost accessory does not compensate for a procedure that directs staff to the wrong isolation point.
Frequently asked questions
How should a LOTO system connect each machine to its isolation points?
Use a controlled equipment record that identifies each relevant source, isolation location, device and verification method. Make the document references match the current physical identifiers.
Why should breaker identifiers match the written procedure?
Matching references reduce ambiguity about which isolator belongs to the equipment and task. A correct identifier still needs technical verification; labels alone do not establish isolation.
What should trigger a review when equipment or electrical supplies change?
Review changes to machines, supplies, breaker models, panel layouts, accessories or the work procedure. Determine whether fit approval, written instructions or training also needs updating.
What is the LOTO system in safety?
It is the employer’s organized approach to hazardous energy control, including procedures, trained roles, appropriate hardware and inspections. It is more than a collection of locks.
What are the OSHA requirements for LOTO devices?
Within 1910.147’s scope, hardware must be dedicated and identified for energy control, durable, standardized, substantial and identifiable as required by paragraph (c)(5). Application and compatibility still need assessment.
How should protection continue through a shift or personnel change?
Use specific procedures that maintain protection during the transfer. Do not assume a shift change permits personal locks to be removed before the incoming arrangement is established.
What changes can require retraining or procedure revision?
Equipment, process, hazard or procedure changes and identified shortcomings can require review or retraining under the applicable requirements. Keep the revision linked to the workers and tasks it affects.
References
- 29 CFR 1910.147 — Control of hazardous energy
- CCOHS — Lockout/Tag out
- CCOHS — Hazardous Energy Control Programs
- 29 CFR 1910.333 — Electrical work practices
A reliable system lets the worker trace the document to the right device and back to the task.
